China manufacturer large super high grade sintered rare earth permanent disc ndfeb magnet

Welcome to contact us for more details, most competitive price for you!

My skype:mark-magnet

General Description:

Neodymium magnets offer the highest energy density than all other permanet magnets.As the strip casting and HD process were used in our factory , we developed high corrosion resistant grade that give superiour weight loss test results,some grade even less than 1.5mg/cm2 in HAST test. Most of such magnets were used in motor ,generator. The size ,shape and coating can be supplied according to customer’s requirement.

Surface Treatment Method:

Due to its low Curie temperature, poor temperature characteristics and easy oxidization to powder, NdFeB magnet must be protected by surface treatment to improve corrosion resistance. According to customers’ requirements, we may provide following platings:

Physical Properties:

Several physical properties of sintered NdFeB magnet:

The magnetic properties of Sintered NdFeB magnets:

The Process Chart of Sintered NdFeB:

Preparation of Raw Material—Strip Casting(SC)—Hydrogen Decrepitation(HD)—Jet Milling—Blending—Orienting and Pressing—Vacuum Sintering—Magnetic Properties Inspection—Machining—Plating—Magnetizing(if needed)—Packing—Delivery

Applications:
Elevator motors
Wind Power Generators
Servo Motors
Hybrid Electric Vehicle
Linear Motors
Compressor Motors
Hydraulic Generators
Other applications:Machinery, audio/video and communication equipment, medical devic, office automation, magnetic separators, etc.
Grade of NdFeB magnet:
N35.N38.N40.N42.N45.N48.N50.N52 (max working temperature:80°C)
N35m, n38m.N40m.N42m.N45m.N48m.(max working temperature:100°C)
N35h, n38h.N40h.N42h.N45h.N48h (max working temperature:120°C)
N33sh, n35sh, n38sh.N4s0h.N42sh (max working temperature:150°C)
N28uh, n30uh, n33uh.N35uh.N38uh (max working temperature:180°C)
N28eh, n30eh, n33eh.N35eh.N38eh (max working temperature:200°C)
N28ah, n30ah, n33ah.N35ah (max working temperature:230°C)

Packing Diagram:

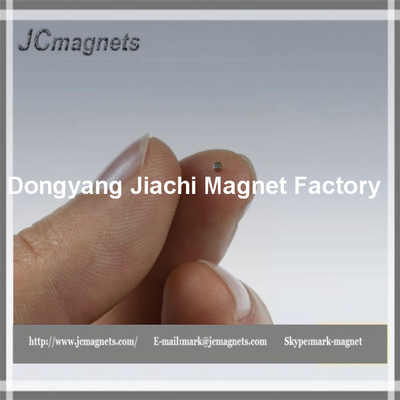

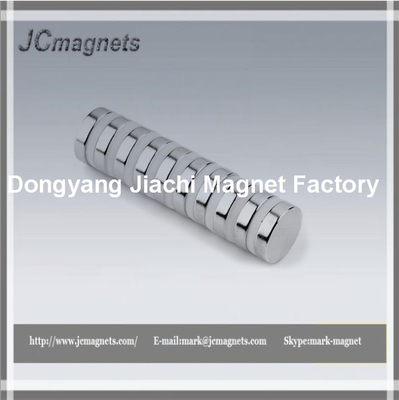

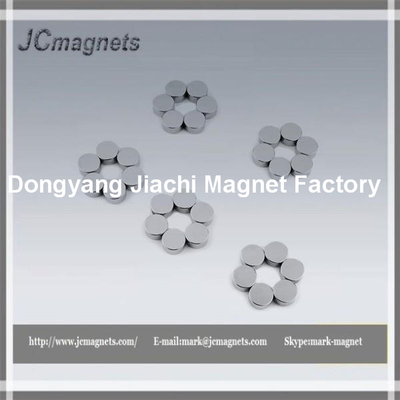

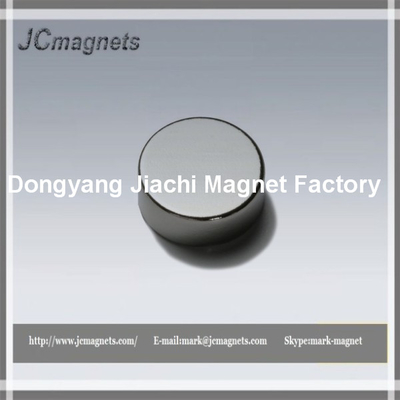

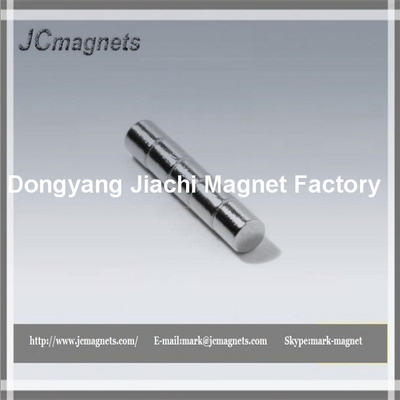

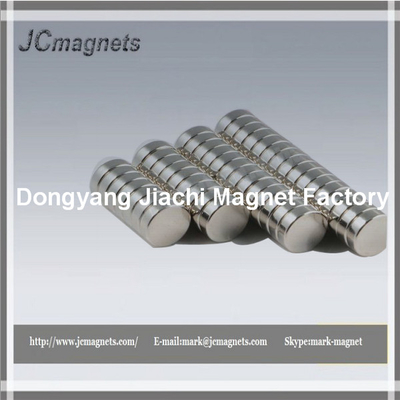

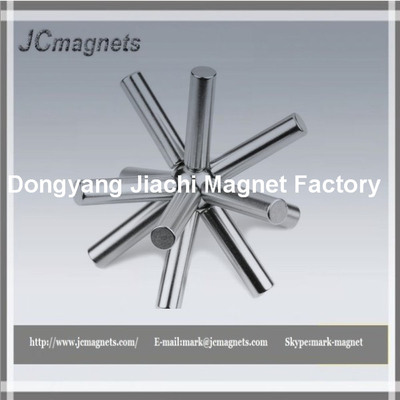

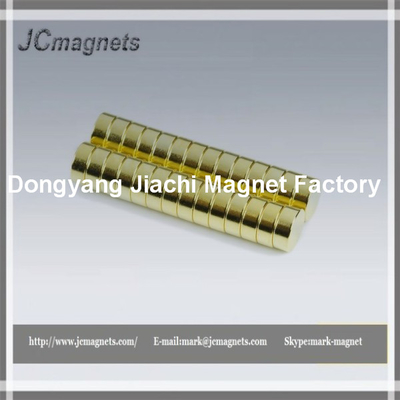

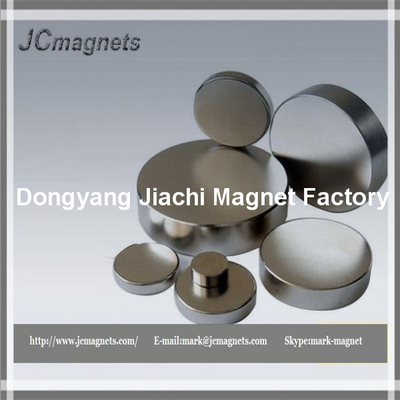

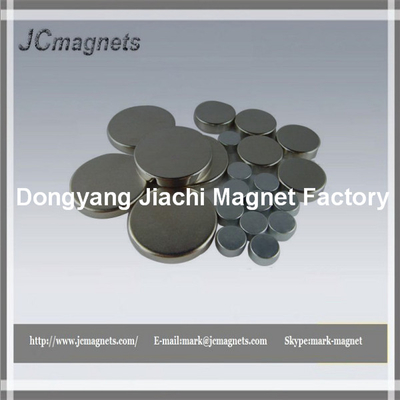

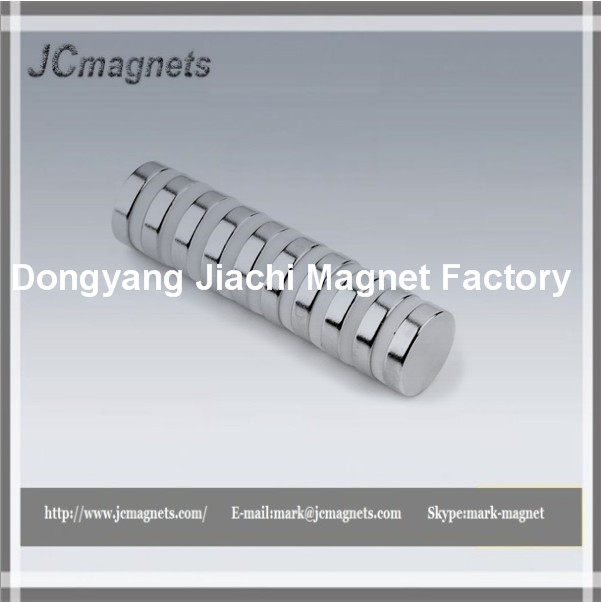

Picture Show:

Be careful when deal with strong rare earth magnet.

Workshop:

When inquiring or ordering, please send us following information:

1.Type of magnet (material & grade)

2.Quantity (annual and per shipment)

3.Shape and dimensions (drawing if necessary)

4.Direction of magnetization

5.Magnetized or unmagnetized

6.Details of surface treatment(Coating)

7.Application if possible

8.Other information and/or requirements Which will be highly appreciated, welcome to further discussion for possible cooperation, thanks!
