| Highlight: | ferrite block magnet,Ceramic block magnet,Y30 block magnet |
||
|---|---|---|---|

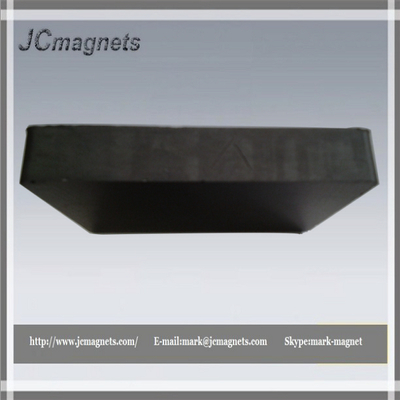

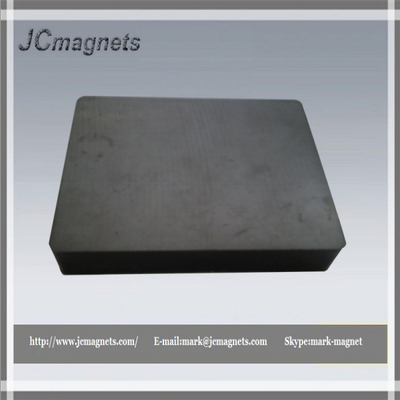

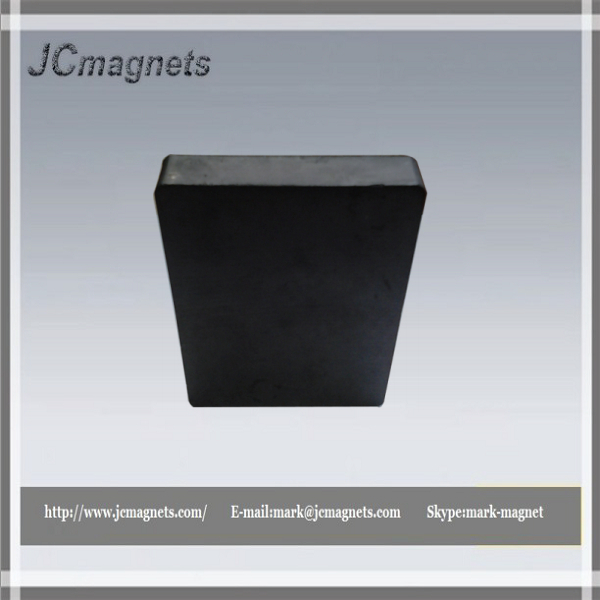

Y30,Y30BH/Ceramic magnet/Ferrite Block magnet

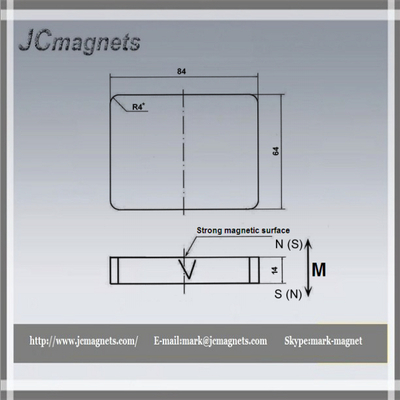

1.size: 84X64X14
2.Ferrite Material:Barium or Strontium
3.Grade: Y30,Y30BH
Item Name: Hot Sale-Size:84X64X14-Y30,Y30BH/Ceramic magnet/Ferrite Block magnet
Item No: Hot Sale-Size:84X64X14-Y30,Y30BH/Ceramic magnet/Ferrite Block magnet JC-FB84
General Description
Hard Ferrite magnets are sintered permanent magnets composed of Barium or Strontium Ferrite. This class of magnets has good resistance to demagnetisation and corrosion, Due to their low cost, Ferrite magnets enjoy a very wide range of applications, from motors and loudspeakers to toys and crafts, occupy about 75% of the world market of constant magnets. we can supply you with both wet-pressed anisotropic and dry-pressed isotropic grades in all shapes and sizes.
The magnetic properties of Sintered Ferrite magnets:
| The magnetic properties of Sintered Ferrite magnets | ||||||||
| Item | Br | Hcb | Hcj | (BH)max | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| JC10T | 210-240 | 2100-2400 | 127-159 | 1600-2000 | 211-279 | 2650-3500 | 6.4-9.5 | 0.8-1.2 |
| JC20J | 245-290 | 2450-2900 | 151-191 | 1900-2400 | 239-279 | 3000-3500 | 10.3-16.7 | 1.3-2.1 |
| JC20 | 350-370 | 3500-3700 | 135-167 | 1700-2100 | 140-171 | 1750-2150 | 22.3-27.1 | 2.8-3.4 |
| JC25 | 380-400 | 3800-4000 | 143-175 | 1800-2200 | 147-179 | 1850-2250 | 25.5-29.6 | 3.2-3.7 |
| JC30 | 390-410 | 3900-4100 | 175-207 | 2200-2600 | 179-211 | 2250-2650 | 27.1-31.2 | 3.4-3.9 |
| JC33H | 390-410 | 3900-4100 | 239-271 | 3000-3400 | 243-275 | 3050-3450 | 27.1-31.2 | 3.4-3.9 |
| JC34H | 370-390 | 3700-3900 | 263-291 | 3300-3650 | 307-330 | 3850-4150 | 24.7-28.7 | 3.1-3.6 |
| JC3845 | 370-390 | 3700-3900 | 263-299 | 3300-3750 | 342-378 | 4300-4750 | 25.5-28.7 | 3.2-3.6 |
| JC3850 | 370-390 | 3700-3900 | 267-303 | 3350-3800 | 382-4.6 | 4800-5100 | 25.5-28.7 | 3.2-3.6 |
| JC4036 | 395-415 | 3950-4150 | 263-291 | 3300-3650 | 279-303 | 3500-3800 | 28.7-31.8 | 3.6-4.0 |
| JC4040 | 390-410 | 3900-4100 | 271-295 | 3400-3700 | 307-326 | 3850-4100 | 28.7-31.8 | 3.6-4.0 |
| JC4129 | 400-420 | 4000-4200 | 215-239 | 2700-3000 | 219-243 | 2750-3050 | 29.6-32.8 | 3.7-4.1 |
| JC4229 | 415-435 | 4150-4350 | 215-239 | 2700-3000 | 219-243 | 2750-3050 | 30.3-33.4 | 3.8-4.2 |
| JC4240 | 410-430 | 4100-4300 | 283-307 | 3550-3850 | 307-330 | 3850-4150 | 31.2-35.2 | 3.9-4.4 |
| JC4433 | 430-450 | 4300-4500 | 247-271 | 3100-3400 | 251-275 | 3150-3450 | 33.4-36.6 | 4.2-4.6 |
| JC4045 | 390-410 | 4200-4100 | 287-310 | 3600-3900 | 347-370 | 4350-4650 | 28.7-31.8 | 3.6-4.0 |
| JC4350 | 420-440 | 4200-4400 | 294-326 | 3700-4100 | 386-410 | 4850-5150 | 33.4-36.6 | 4.2-4.6 |
| JC4545 | 440-460 | 4400-4600 | 318-350 | 4000-4400 | 347-370 | 4350-4650 | 36.6-39.8 | 4.6-5.0 |
